Session 5: From your mind to a 3D printer

Today is the day that you will create your file for 3D printing. You must complete your file by the end of this session, so that you can hold it in your hands during session 6.

Preparing your file for printing

Connect your shapes

Tinkercad face

No floating heads! All your individual shapes must connect or even overlap, so that they are joined together in your print.

If you remember the “additive manufacturing”, the printer is going to go layer by layer. If there is an empty layer between your neck and your head, your head is going to fall off.

Check carefully from all angles to make sure there are no gaps between your body and your arms, legs, head – even check your eyeballs!

Angles and supports

If your layers are flat and vertical, the printer can handle it easily, but angles can be tricky. Something like a 90 degrees right angle up off the surface of the printer bed will dribble because the printer doesn’t have anything solid to layer on top of.

How 3D software displays the angles How a 3D printer executes the angles

If you need shapes at angles, 3D printer software can automatically add supports for shapes at an angle. It’s calculating angles and then creating a tree-like support system that will get broken off after the print is complete.

MewTwo with the tree sturcture supports highlighted in green

Rock solid base

When you used the 3D pens in previous sessions, sometimes the extruded filament didn’t stick to the surface after you moved your pen away. This can happen to a 3D print, if there isn’t a substantial enough base to print from.

See the MewTwo above – it’s not build on just feet. The base is there to give it strength and structure.

If your character has dainty feet, consider adding a base.

The ins and outs of emboss and deboss

Who’s da boss?

Emboss = sticking out Deboss = going in

You want to be precise and proportional about how far your shapes will stick out (emboss) and how far they will stick in (deboss).

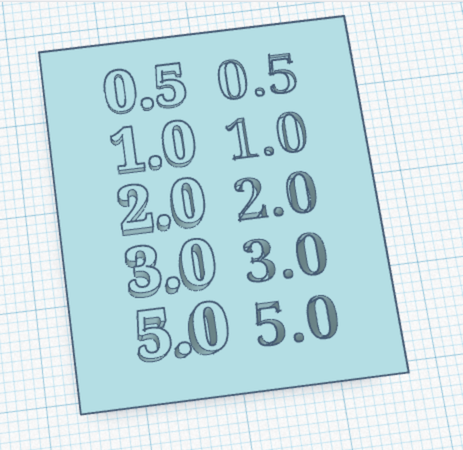

Emboss and deboss 3D design Emboss and deboss 3D design from the side

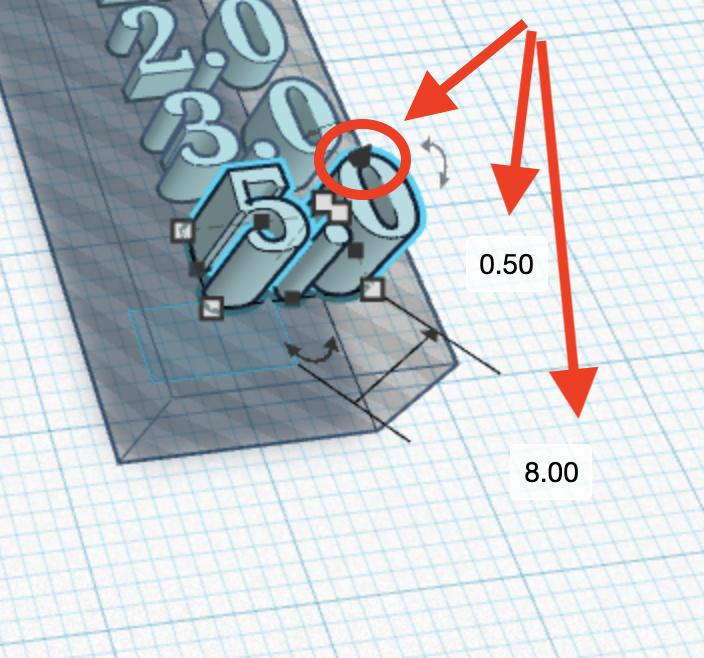

Tinkercad allows you to be very precise, if you use your workplane and the Z axis tool that is shaped like a cone.

Close up of black cone-shaped Z axis tool

The Big One

Now it’s time to build your character in Tinkercad!

One of your files, either your avatar from session 4 or a new character you create today will be the project that gets 3D printed. Take your time and use all the skills you’ve learned to bring your character to life.

If you are starting a new design today, take 5 minutes to draw the broad shapes of the new character design, so you know which objects to start with.
